Step-by-step instructions

To create the above question in Problem-Attic, follow these steps:

1. Go to the Arrange tab and click Write New Problem.

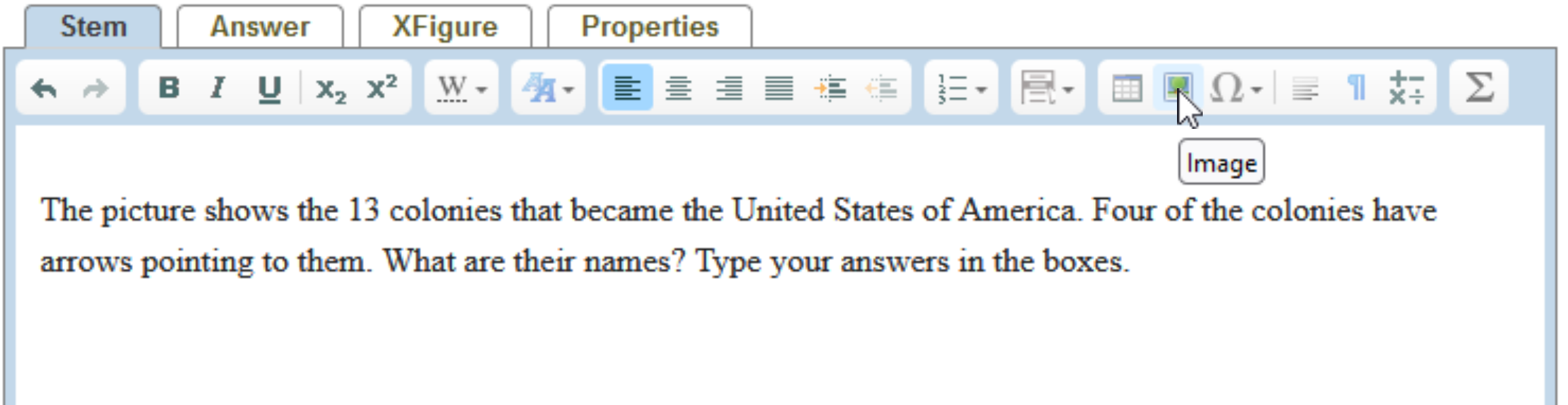

2. In the editor, type the question that allows the student to interact with an image, then press Enter to start a new line.

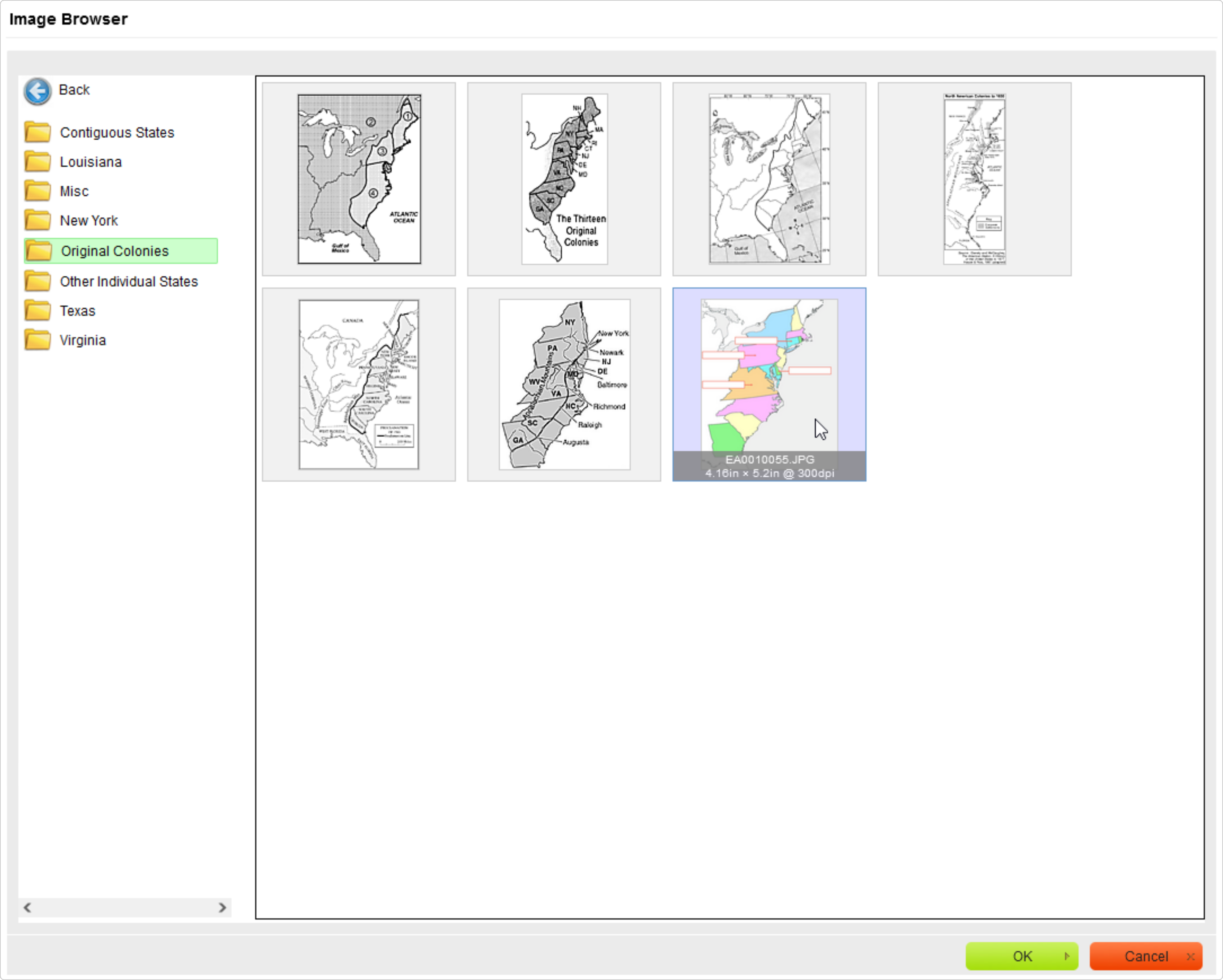

3. In the editor toolbar, click Image to open the image browser. Upload an image or choose from Problem-Attic's library of stock images.



4. Click OK at the bottom of the dialog box.

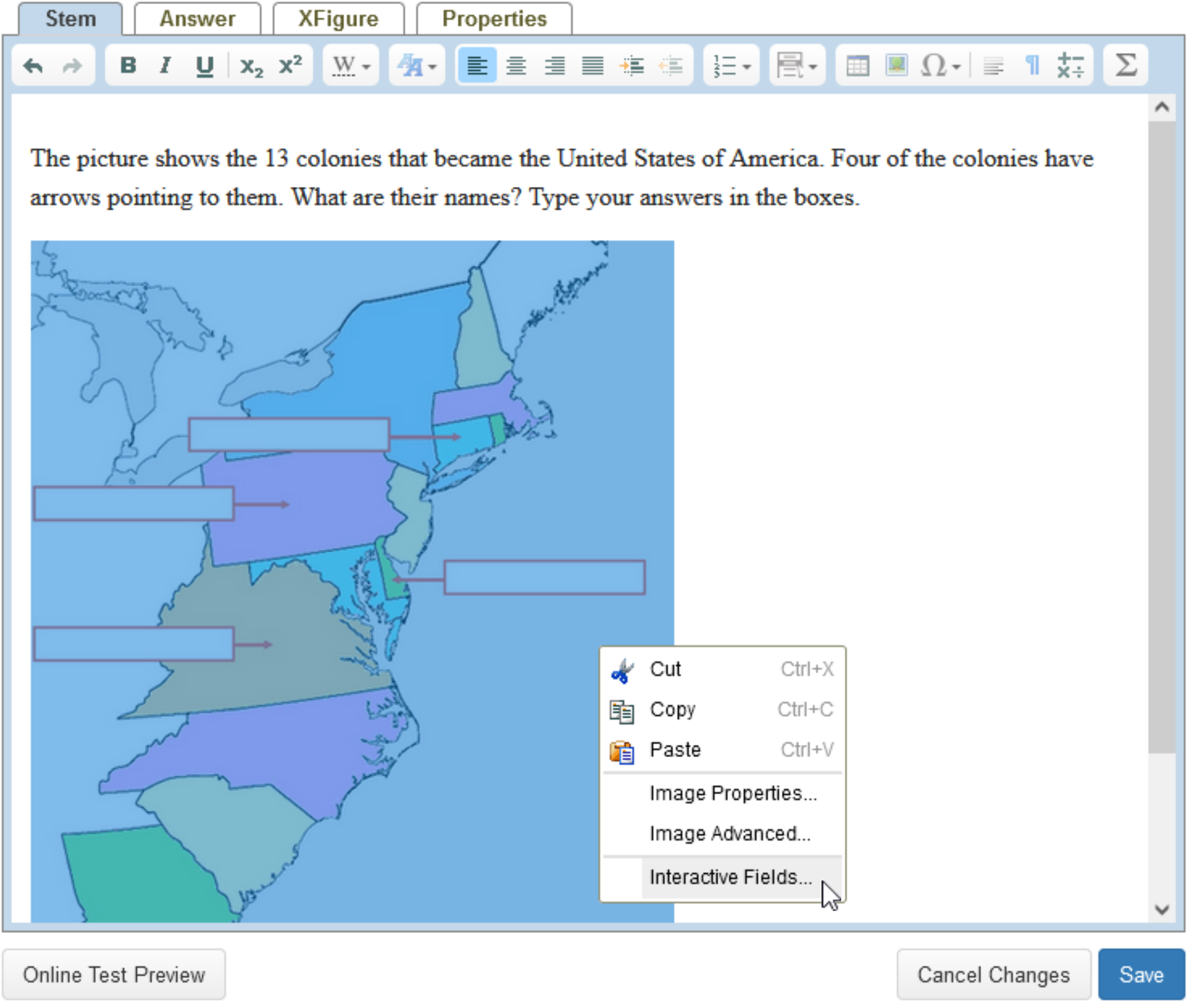

5. In the editor, right-click the image and select Interactive Fields from the pop-up menu.

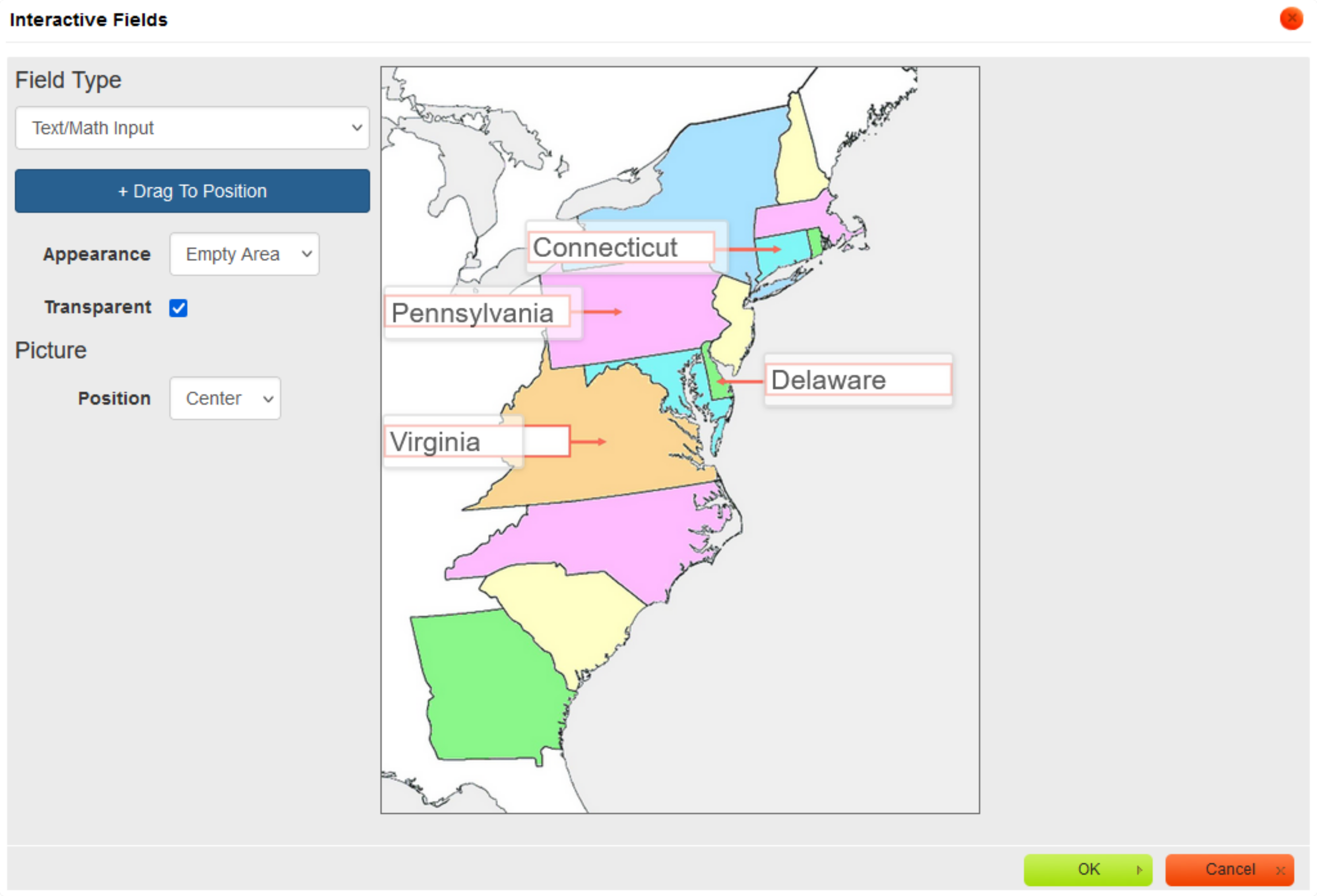

6. For Field Type, select Text/Math Input. Select Empty Area for Appearance, and choose a Picture Position if necessary.

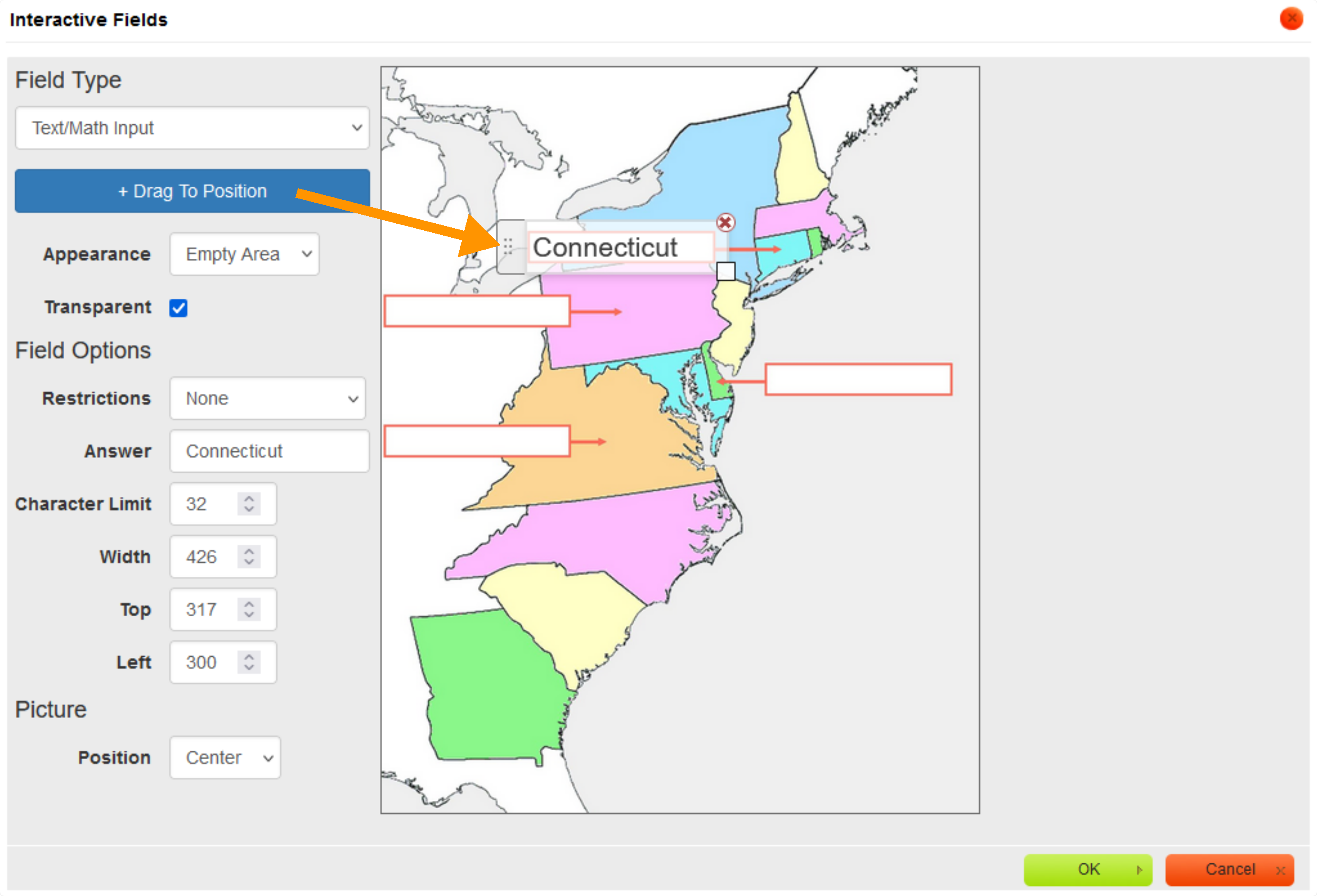

7. Click +Drag To Position or drag the button onto your image.



8. Click and hold the left tab to move the answer field around the image. Adjust the field size by clicking and dragging the bottom right corner square.

9. Click in the field and type the correct answer.

10. Repeat steps 7-9 for each answer field.



11. Click OK at the bottom of the dialog box.

12. In the editor, click Online Test Preview to see how the answer field question will look and behave in an online test. When you are done, close the Preview, then then click Save.
